FEATURES AND SPECIFICATIONS
Equip your installs with the most advanced garage door sensor on the market.
Infinity Shield is the most advanced garage door safety sensor available, with multiple infrared sensors that create 25 beams across the entire garage door opening. It prevents accidental damage to vehicles and anything else that may be in the path of a closing garage door, and keeps children and pets safe.
WHAT’S INCLUDED

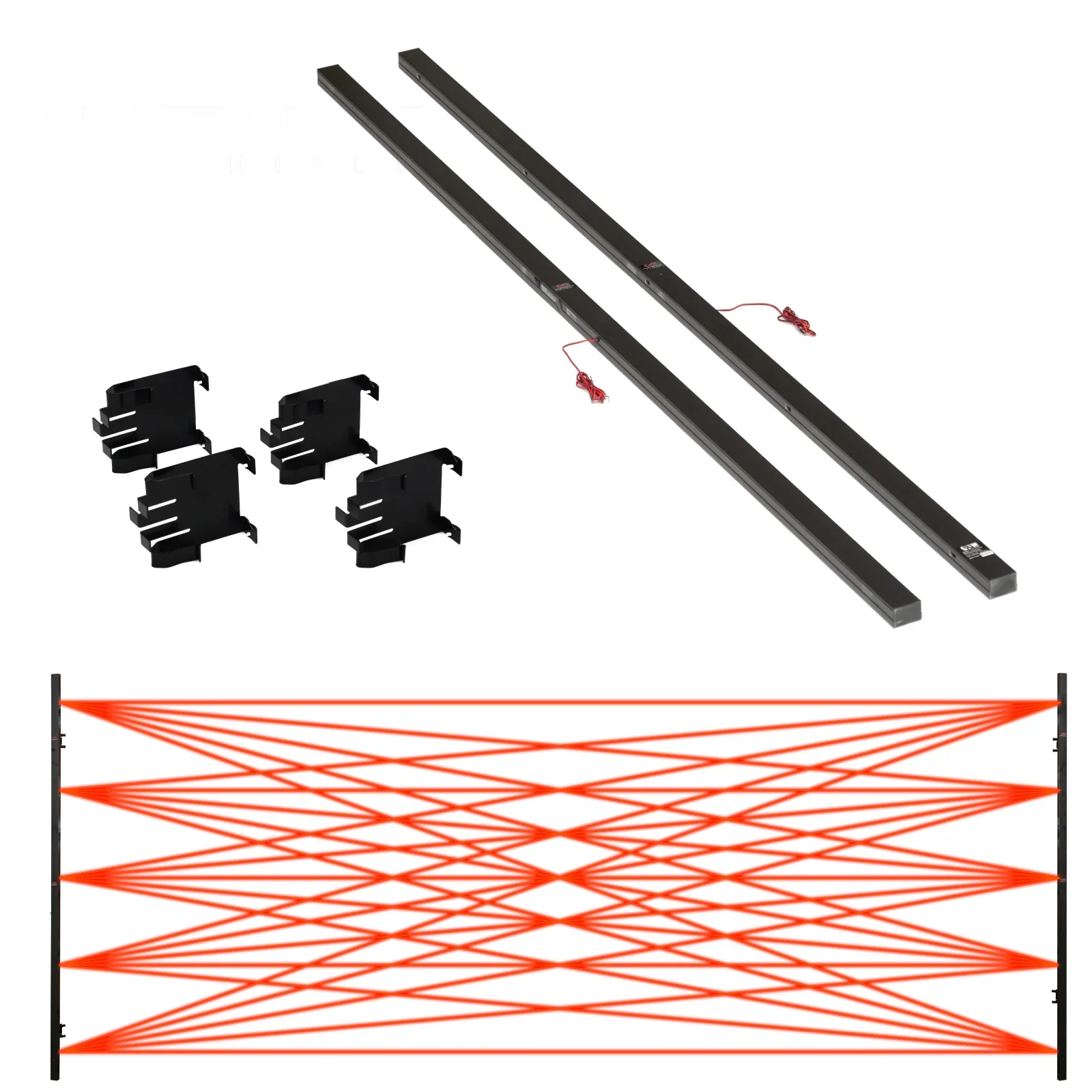

1 × Infinity Shield Transmitter Bar
1 × Infinity Shield Receiver Bar
4 × Brackets
4 × Wire Nuts
User Guide & Installation Manual
25 infrared beams, covering from 3.5″ to 71.5″ above the floor.
Parking assistant - a beeper lets drivers know when their vehicle is blocking the path of the door (this feature may be easily turned off).
Compatible with all major residential garage-door opener brands.
Quick and easy installation. Uses existing wiring from the opener, no additional wiring needed.
Does not require precise alignment, reducing callbacks and enhancing customer satisfaction.
Engineered for durability and safety. UL–325 certified and backed by patents (U.S. Patent 10,997,833 B1 + others).
KEY FEATURES
Door width supported: 8 – 18 ft
Minimum door height: 7 ft
Response time: 450 ms
Dimensions (Transmitter and Receiver): 75″ L × 1 5/8″ W × 1 1/8″ D
Operating temperature: –30 °C to +60 °C
SPECIFICATIONS
SUPPORTED BRANDS

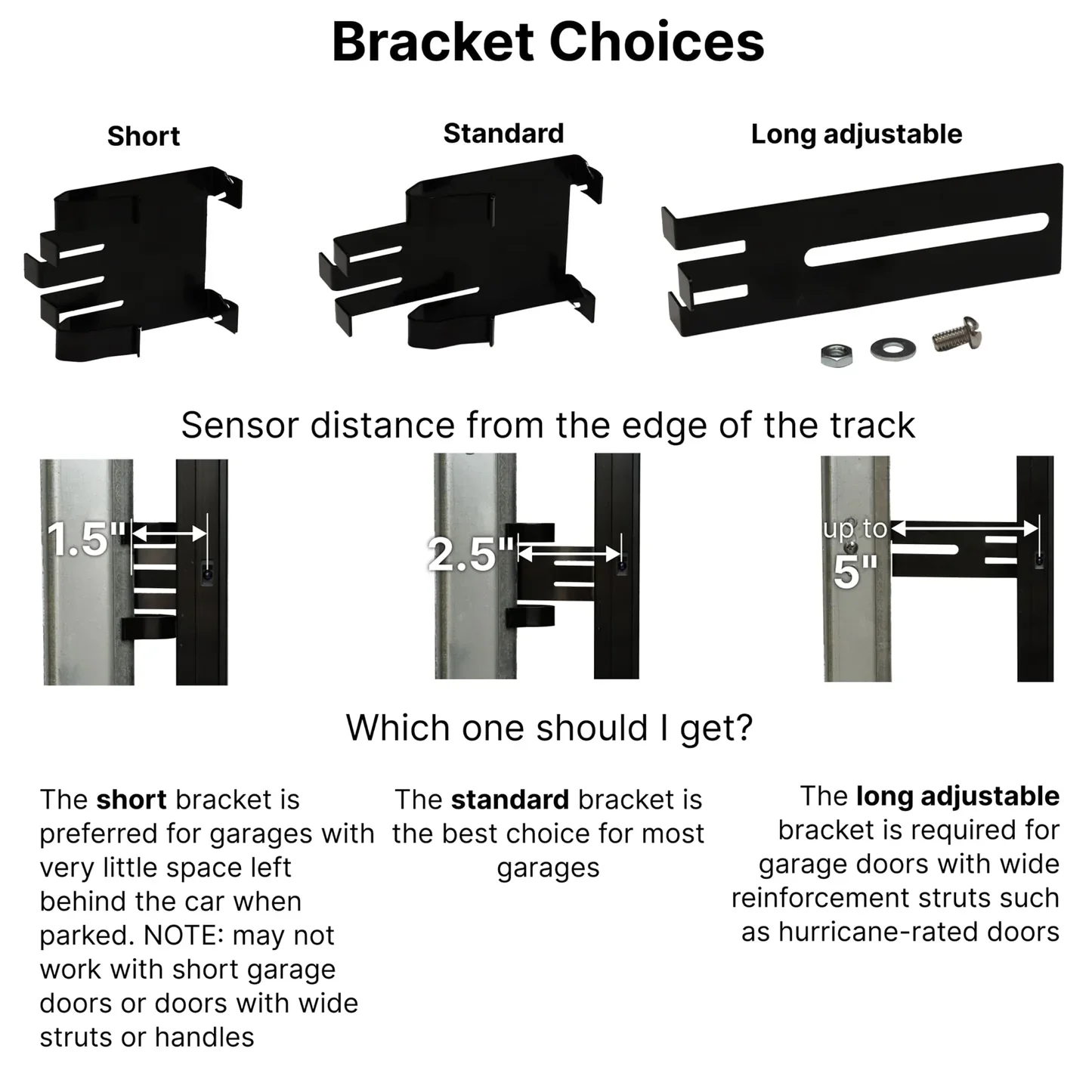

Each Infinity Shield installation uses steel mounting brackets to attach the sensors to the door track. Three different styles of brackets ensure compatibility with most sectional and roll-up garage doors.
BRACKET KITS
Add Infinity Sheild to your product lineup today.
Provide your clients with the highest standard of garage door protection available — and open the door to smarter installs and greater customer trust.
The Infinity Shield system offers proven, full-door protection for your garage. Compatible with your existing opener, easy to install, and backed by industry-leading specs.
